Model N3000 • WiFi • Automated Batch Reporting

Smart Production Yield Counter
with Automated Batch Reporting

The NBE Smart Production Yield Counter digitizes the factory production logbook by automatically capturing machine output, process events, operator actions, and batch performance.

At the end of each batch, the system generates a structured production report and sends it by email, giving supervisors and managers immediate visibility without manual reporting.

See Batch Reporting Technical Data

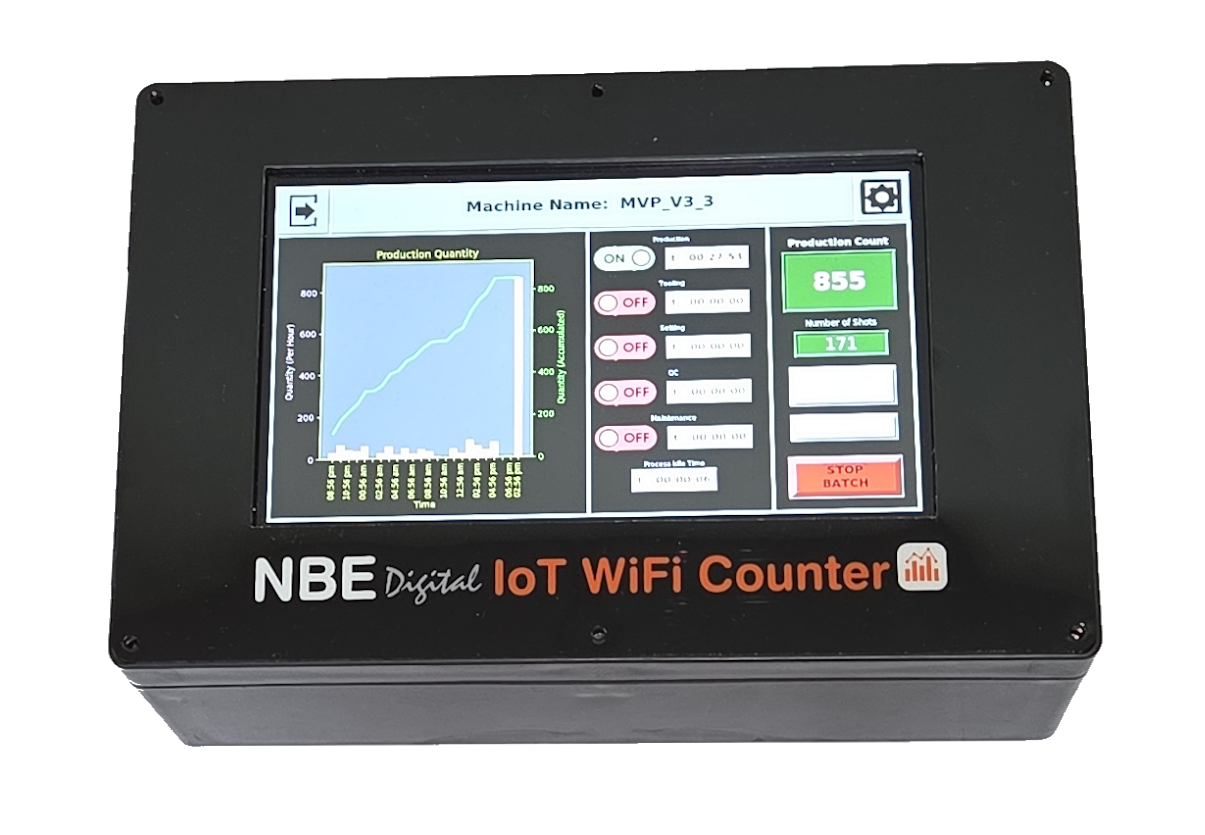

NBE Production Yield Counter N3000.

What Problem It Solves

Manual Logbooks

Many factories still rely on handwritten notes, whiteboards, or spreadsheets to record production events and output.

Missing Downtime History

Without structured event logging, it is difficult to understand when production stopped and what activity took place instead.

Delayed Reporting

Supervisors often need to wait until the end of shift or batch before receiving accurate production information.

Where It Fits in the Production Process

The Yield Counter sits between the machine cycle and the reporting workflow, automatically converting machine activity into usable production intelligence.

Machine Cycle

Each production shot / cycle occurs

Sensor Input

Limit switch or IR sensor detects the cycle

Yield Counter

Counts output and records activity states

Batch Stop

System finalizes the production record

Email Report

Automatic batch report sent to recipients

What the System Captures

Production Output

Captures actual production count and compares it with target quantity for each batch.

Process Event Timeline

Records activity states such as Production, Tooling, Setting, QC, Maintenance, and Process Idle.

Operator Traceability

With optional RFID login, the system can associate production events and batches with individual operators.

Production Tooling Setting QC Maintenance Process Idle Operator ID Target vs Actual

Automated Batch Reporting

Example Report Content

Section	What It Shows
Production Summary	Target quantity, actual quantity, batch overview
Event Timeline	Batch started, production, tooling, QC, maintenance, idle
Process Time Breakdown	How much time was spent in each process state
Staff / Operator	Who performed or logged the activity

Why This Matters

The report turns raw counting into a structured production record. Instead of only knowing “how many parts were made,” managers can review what happened during the batch, where time was spent, and who was involved.

This makes the Yield Counter much more than a counting device — it becomes a practical digital production logbook.

Current deployment supports automatic end-of-batch email reporting. Cloud dashboard expansion can be added later if required.

Production Reporting Options

The NBE Yield Counter automatically generates production reports at the end of each batch. Customers can start with the basic reporting system and later upgrade to a premium dashboard version.

Basic Version

The basic system generates a structured production report in table format and delivers it automatically by email. This provides a digital production logbook without requiring any cloud infrastructure.

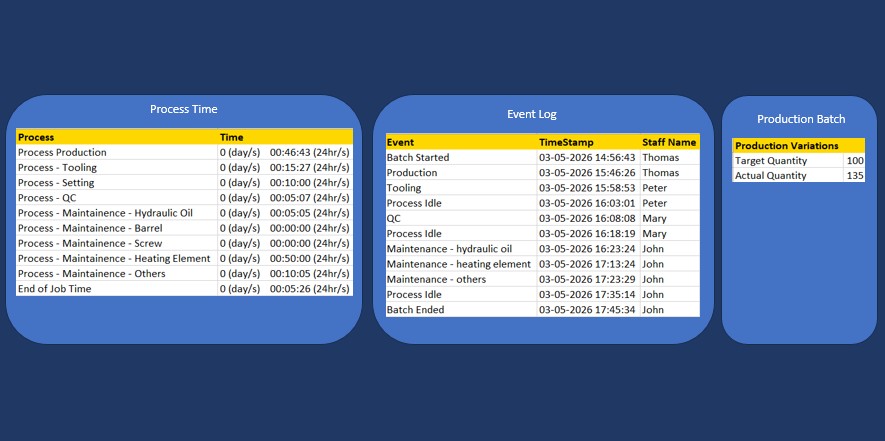

Example batch report showing production summary, event timeline, and process time breakdown.

Production quantity vs target
Machine activity timeline
Process time breakdown
Operator identification
Automatic email delivery

Premium Version Coming Soon

The premium version enhances reporting with a modern dashboard interface. Production performance, process distribution, and event history are visualized using charts and analytics.

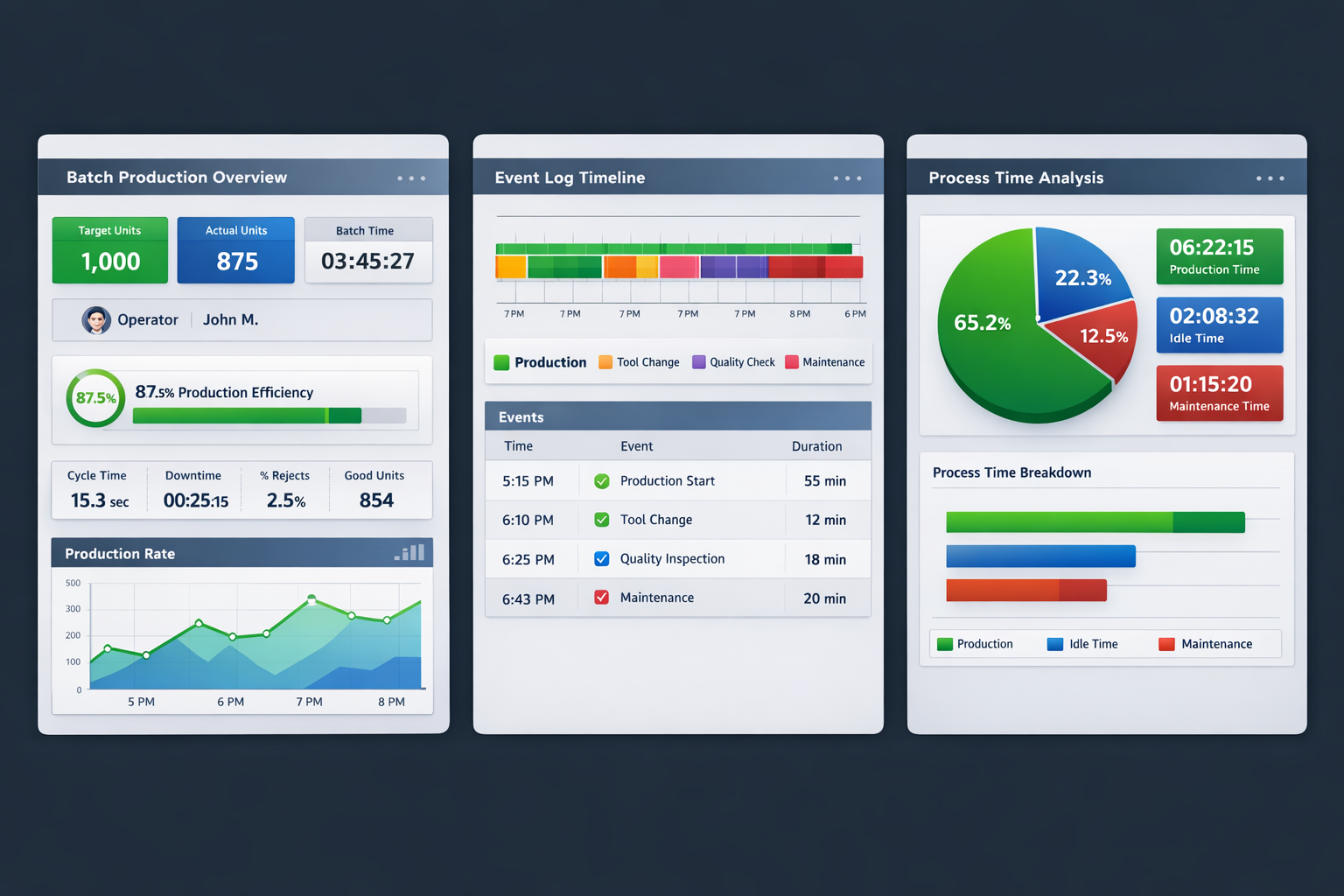

Dashboard-style visualization of production performance and machine activity.

Visual production dashboards
Event timeline visualization
Process time analytics
Production efficiency metrics
Future cloud integration

Machine Integration Diagram

A simple digital layer added to existing machines — no full MES system required.

Machine

Injection molding / assembly / packaging machine

Sensor

Industrial limit switch or IR proximity switch

N3000 Counter

Counting, event logging, operator traceability

WiFi

Batch summary delivery and connectivity

Recipients

Supervisors / managers receive automated report

Key Benefits

Replace Manual Logbooks

Automatically records machine activity and production results, reducing manual record-keeping effort.

Immediate Visibility

Production reports are delivered automatically at batch end, so supervisors can act without waiting for manual summaries.

Process Accountability

Event logging and optional RFID login improve traceability of who did what during each batch.

Downtime Insight

Process state tracking helps identify where time is being spent outside of production.

Target vs Actual Tracking

Compare configured production targets with actual batch output for clearer performance review.

Simple Deployment

Adds digital reporting to existing machines without the complexity of a full manufacturing execution system.

Technical Data

Model

N3000

Net Dimension

230 × 150 × 85 mm

Net Weight

1.2 kg

Power Supply

5 V DC, 3 A

Display

LCD

Sensor Options

(A) Industrial Limit Switch
(B) IR Proximity Switch

Communication

WiFi 2.4 GHz

Operating Temperature

0–50 °C

Storage Temperature

0–60 °C

Humidity

10–90% non-condensing

Response Time

1 second

Optional Accessories

Card/keyfob, 13.56 MHz, MIFARE (S50)

Typical Applications

Injection Molding

Count shots, track process interruptions, and evaluate target vs actual production with cavity-based output planning.

Assembly Lines

Digitize throughput logging and capture event-based activities such as setup, QC and stoppages.

Packaging Lines

Monitor production count and generate clean batch records for management review.
